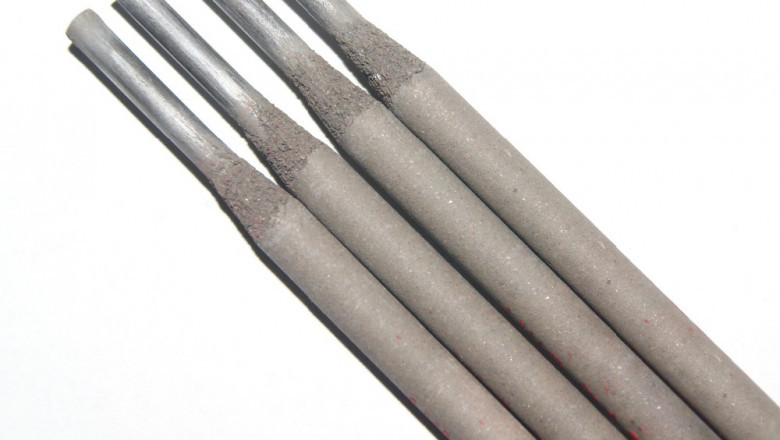

A welding electrode is a metal wire coated with a comparable composition to the metal being welded. Welding Electrodes are several aspects to consider before selecting the best electrode for any project.
As part of the weld fusion, the arc welding electrode/SMAW is consumable. TIG electrodes are non-consumable because they do not melt and form part of the weld. The MIG welding electrode is a MIG wire that is fed regularly.
The welding electrode selection is heavily influenced by weld strength and ease of cleanup. higher bead quality and less splatter
Welding electrodes must be stored in a moisture-free environment, and they must be carefully removed from the packaging to avoid damage.
What Is The Purpose of Covering Welding Electrodes?
When molten metal is exposed to air, it absorbs oxygen and nitrogen, causing it to deteriorate and become brittle. To shield the molten/solidifying weld metal from the atmosphere, a slag blanket would have to be applied, and electrode coating provides this shield.
The coating composition of welding electrodes determines their utility, and hence the composition and specification of the deposited weld metal.
They base the formulation of welding electrode coatings on proven metallurgy, physics, and chemistry principles.
- Minimum spatter in the vicinity of the welding zone
- A smooth welded metal surface with even edges
- A welding arc that is stable and smooth
- A robust and durable coating
- Simple slag removal
- Increased deposition rate
- Welding penetration control
Welding Electrode Classification
- This E stands for electrode for arc welding.
- The first two or three digits show the tensile strength of the deposited material in thousands of pounds per square inch when pulled apart.
- The third or fourth digit identifies the location of the weld. If 0 is displayed, no categorization is used; 1 is for all positions; 2 is for flat and horizontal positions, and 3 is for flat positions only.
- The fourth digit shows the type of coating as well as the type of power supply, AC/DC, straight or reverse polarity.
- The number E6010 now denotes an arc welding rod with a stress tensile strength of 60,000psi, that may be utilized in all positions, and that uses direct current with terse polarity.
The Arc Welding Electrode is Made of Stainless Steel
- E - This letter denotes the arc welding electrode.
- The first three numerals denote the American iron and steel stainless steel type.
- The last two digits represent the welding position and current.
- The number E-308-16, for example, specifies stainless steel type 308 for every position, with AC or
Types of Electrodes
Bare Electrodes
These bare electrodes are made of wire compositions designed for specific applications. Except for those required for wire drawing, there are no further coatings. The wire drawing coatings have a minor stabilizing effect on the arc but have no discernible effects. Bare electrodes are used to weld manganese steel and other materials where a covered electrode is not desired.
Light Coated Electrodes
- As impurities, it reduces/ dissolves oxide, phosphorus, and oxide.
- It changes the molten metal's surface tension. It causes the electrode globules to become smaller and more frequent. It smoothes and uniformizes the movement of the molten metal.
- It increases arc stability by introducing easily ionized elements into the arc cascade.
- Unlike shielded arc electrode-type slag, light coatings produce thin slag.
Electrodes with Shielded Arc/Heavy Coating
- Mineral coatings are used.
- With the help of minerals and cellulose
- The cellulose coatings were made of soluble cotton/any other type of cellulose with a trace of sodium, potassium, titanium, and other minerals.
- With a gaseous section around the arc and the welding zone, the cellulose coatings safeguard the molten metal.
- Sodium silicate, metal oxide clay, and other inorganic compounds and mixtures are among the mineral coatings. These electrodes cause a slag deposit to form.
Welding Electrodes Applications
- The electrode coatings' goal is to create a gas shield around the arc, which prevents contamination from oxygen and nitrogen at the weld metal zone.
- The oxygen has the power to interact with molten metal, eliminating alloys and generating porosity in the process.
- Brittleness, low strength, low ductility, and even poor corrosion resistance are all negative impacts of nitrogen.
- Impurities such as sulfur, oxides, and phosphorus are reduced as they weaken the weld deposit.
- They steady the arc, minimize large voltage swings, and significantly reduce spattering.
- By lowering the surface tension of the molten metal at the electrode ends, it disintegrates into small fine particles. For better outcomes, they minimize the attractive pressure between the molten metal and the electrode.
- The silicates in the coating aid in the formation of a slag layer over the molten metal. Because the slag forms slowly, the underlying metal has enough time to cool and harden. The delayed solidification eliminates the chance of gas and float contaminants becoming trapped at the surface. The slow cooling process anneals the welding deposit.
- By introducing alloying materials into the coatings, the physical appearance and properties can be altered. Slag will generate higher-quality weld metals at a faster rate.
