Directional control valves are the workhorses vigorously depended upon in the realms of pressure-driven circuits and hardware just as pneumatic frameworks as a result of how they permit liquids to stream into explicit pathways from one or different sources. The most essential arrangement is a spool inside a chamber where the development of the spool is the thing that licenses or limits the progression of liquids through it. An activating power should be applied to work the valve and move it from a typical (or impartial) position to a working position. More complicated control valves can have multiple essential situations by having numerous functioning positions.
Sorts OF DIRECTIONAL CONTROL VALVES
The directional control valve is arranged by its different attributes, like the number of ports (outer openings permitting liquid to enter and leave the valve), several positions, the activating strategy utilized, the kind of spool, the liquid way, etc as follows:
Liquid Path: Check valves (permits stream in one heading just activated by low-pressure input stream, impeding stream the other way), transport valves (consider exchanging back and for the between two stream sources into a one-branch circuit, where one source is frequently a reinforcement for the other), two-way valves, three-way valves, four-way valves.
Positions: There are ordinarily a few positions – impartial/ordinary and a couple of working positions.
Ports: The number of openings through which liquid can stream into and out of the valve.

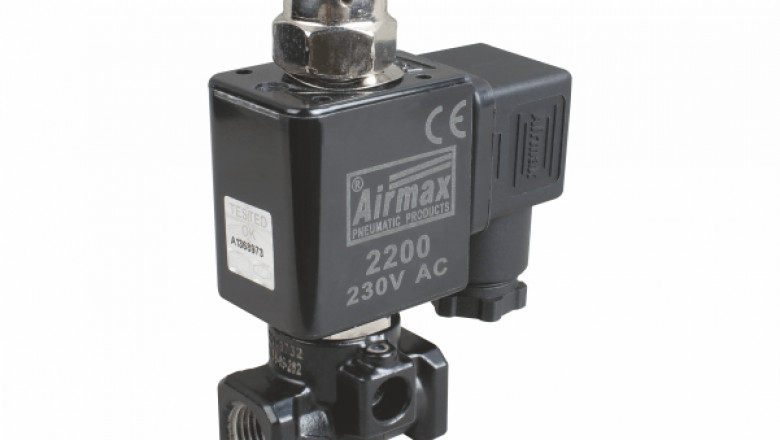

Activation: How the valve is moved starting with one position then onto the next, including manual (moving a handle, pressing a button, stepping on a foot pedal), mechanical (cam and rollers), pilot signal (pressure-driven or pneumatic), or solenoid (stimulating the solenoid or electric loop makes an attractive field against the armature to drive the spool into position.
Spool: The sort of spool can turning (ordinarily with manual activation) to such an extent that the spool is pivoted into a functioning position or sliding to such an extent that the spool is slid into a situation to adjust its different chambers to the ports.
Usefulness OF DIRECTIONAL CONTROL VALVES
Out in the field, these gadgets are regularly nicknamed "bang-bang valves." These valves can move from completely open to completely shut in a moment, which can cause a "liquid sled" or a banging clamor. Once in a while, they're likewise called "discrete valves" since they shift starting with one discrete position then onto the next or "switch valves" since they switch the stream by halting it, beginning, or adjusting its bearing. Various mixes are conceivable as far as the blend of ports and places of various directional control valves. One model is a 4/3 or 4-ports 3-position valve. In the US it would be known as a 4-way valve, however, worldwide principles utilize "port." One of the ports would be for getting a compressed liquid from a siphon, another would course liquid back to the supply or exhaust framework (for pneumatic frameworks), and the excess two ports would be for steering liquid to and from the actuator. As far as the three positions, nonpartisan would mean all ports are impeded and there is no progression of liquids. The leftover two working positions take into account the progression of fluids in the correct ways to arrive at different parts.
Ventures THAT USE DIRECTIONAL CONTROL VALVES
Utilizing directional control valves is significant to any industry that depends on water-powered circuits, apparatus, and hardware, which covers a bewildering cluster of utilization. Anything with an engine will utilize directional control valves, so they figure unmistakably in the auto business in each vehicle transmission you can imagine, including programmed transmissions (AT), robotized manual transmissions (AMT), persistent variable programmed transmissions (CVT), twofold grasp transmissions (DCT) and the control of mechanized grip incitations in half breed drives. It's difficult to consider anything "modern" that doesn't utilize directional control valves – bite the dust projecting and foundry, machine tooling, marine/offshore
