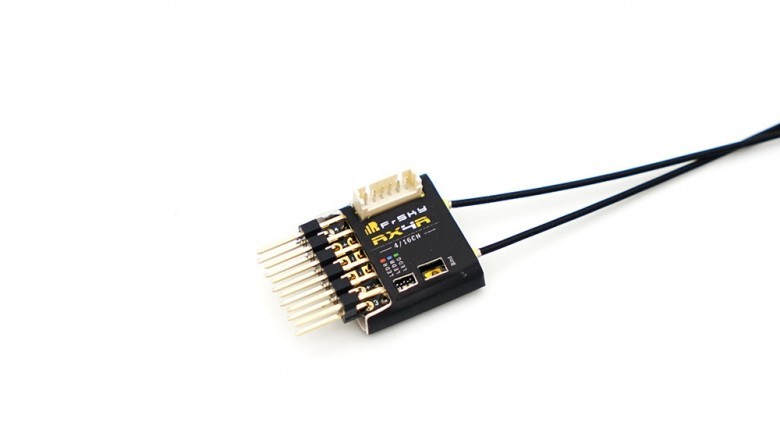

The FrSky RX4R is a standalone receiver with all the functions of X4R
The FrSky RX4R is a standalone receiver with all the functions of X4R
The FrSky RX4R also supports the redundancy function, this means you can add another receiver as a back-up in case the first one fails. Last but not least, the RX4R and the whole RX-line has a 40% increased operating range compared to the previous X series receivers.

The FrSky RX4R is a standalone receiver with all the functions of X4R

The FrSky RX4R is a standalone receiver with all the functions of X4R, it features 4 PWM outputs with high precision and low latency. The PWM output latency is 9ms less than that of the X4R in high speed mode. The FrSky RX4R also supports the redundancy function, this means you can add another receiver as a back-up in case the first one fails. Last but not least, the RX4R and the whole RX-line has a 40% increased operating range compared to the previous X series receivers.

With pin --- the pin is soldered on the board

Without pin --- the pin is NOT soldered on the board

FrSky RX4R SPECIFICATION

 Dimension: 18×17×7mm (L×W×H)

 Weight: 2g / 2.4g (with two antennas)

 Number of Channels: 16CH (1-4CH PWM from conventional channel outputs, 1-16CH from SBUS OUT port)

 Operating Voltage Range: 3.5V-10V

 Operating Current: 100mA@5V

 Operating Range: >2km

 Servo Frame Rate: 9ms (HS—High Speed Mode)/18ms (FS—Normal Speed Mode)

FrSky RX4R FEATURE

Small and High sensitivity (40% Increase of the range compared to previous X series receivers)

Higher precision PWM

Low latency PWM output

Lower power consumption

Redundancy function supported

Smart Port enabled and telemetry data transmission supported

Battery voltage detection supported

2 detachable IPEX 4 connector antennas

PCB protection with the comformal coating craftwork
