The FrSky receiver X8R is in a Smaller package then previous 8 channel receivers, but has so much more capability. The new SmartPort supports the new hub-less sensors as well as the older hub analog sensors.The X8R supports 8 standard servo outputs, and you can access all 16 channels by using the Sbus line with Sbus supported servos or use a FrSky S.BUS Decoder for the full 16 channels.

The FrSky receiver X8 protocol is also backward compatible

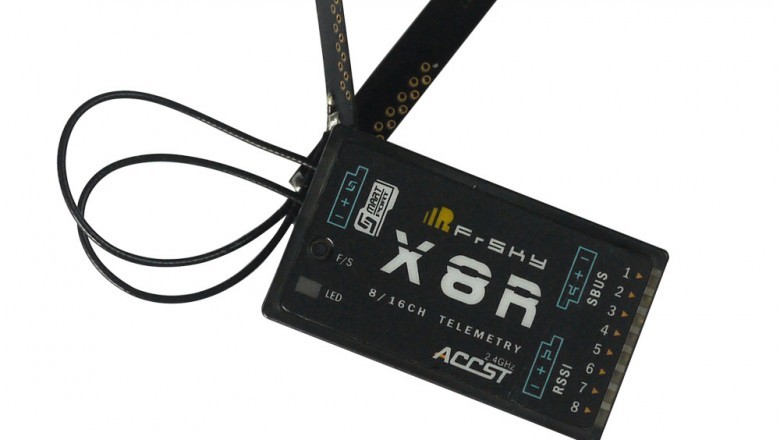

FrSky receiver X8R Description

The FrSky receiver X8R is in a Smaller package then previous 8 channel receivers, but has so much more capability. The new SmartPort supports the new hub-less sensors as well as the older hub analog sensors.The X8R supports 8 standard servo outputs, and you can access all 16 channels by using the Sbus line with Sbus supported servos or use a FrSky S.BUS Decoder for the full 16 channels. Or you can use 2 X8R receivers in combination and the channels will sync 1-8 on the first and 9-16 on the second.The FrSky receiver X8 protocol is also backward compatible! In D8 mode it work with the DHT, DJT, DFT and DHT-U transmitter modules.

FrSky receiver X8R Features:

More number of channels: 1~8ch from conventional channel outputs, 1~16ch from SBUS port,or combine two X8R to become a 16 channels receiver.

Parallel two X8R to become a 16 channel receiver.

With RSSI PWM output (0~3.3V)

SmartPort enabled, realizing two-way full duplex transmission.

FrSky receiver X8R Specifications:

Number of Channels: 16

Dimension: 46.5mm x 27mm x 14.4mm (1.83" x 1.06" x .56")

Weight: 16.8g (.59 oz)

Operating VoltageRange: 4V-10.0V

Operating Current: 100mA@5V

Operating Range: >1.5km (FullRange)

RSSI output: analog voltage output (0~3.3V)

FrSky receiver X8R Compatibility:

All 16 channels requires the FrSky Taranis, or the XJT module bound in D16 mode.

For 8 channels in D8 Mode you can use the FrSky Taranis or XJT, DJT, DFT, DHT and DHT-U modules.

FrSky XJT module Description

Features:

Advanced Continuous Channel Shifting Technology (ACCST SYSTEM) achieves highly reliable link in interference rich environments.

Smart Port - Full Duplex communication

Easy to bind and instant link-up

Excellent reboot times

All channels failsafe

Quick response

Very smooth servo movement

Alarm on events of receiver (low battery voltages, poor reception, etc.)

Error-free link, by using 48bits CRC algorithm

Firmware upgradable

Compatibility:

V8 Series: (Non-Telemetry receivers)

V8FR-II, V8R7-II, V8R4-II, VD5M

D Series: (Telemetry receivers)

D8R, D8R-II, D8R-II Plus, D8RSP, D8R-XP, D6FR, D4FR, D4R-II, etc.

X Series: (Telemetry receivers)

X8R, X6R, X4R, etc.

LR Series: (Long Range receivers)

L9R

Compatible with the following transmitters:

JR: 347, 388, 783, U8, PCM10, PCM10S, PCM10SX, PCM10IIS, 8103, J9303, MX-22, MX-24S, PX, 9XII, Eurgle 9X, Turnigy 9X and more.

Specifications:

Operating Voltage Range: 6.0V-15.0V

Operating Current: 140mA (@6V), 80mA (@12V)

Output Power: ≤ 100mW
