Frsky D8R-XP 27ms Firmware Specifications
The Frsky D8R-XP 27ms Firmware is a special receiver that is identical to the D8R-II Plus, but it has added the RSSI and CPPM outputs commonly used for FPV aircraft. CPPM can reduce wiring to some flight controllers, a single servo extension can carry all 8 channels to the flight computer. Furthermore, CPPM output can be used as a wireless trainer system (wireless trainer cable). The RSSI output is for use with On Screen Display (OSD) systems that are common in the First Person View (FPV) vehicles. (All FrSky telemetry receivers send RSSI levels back to the transmitter, but this receiver can output this data for use with an OSD)
Frsky D8R-XP 27ms Firmware Features:
Two external analog telemetry ports (A1&A2) and one digital data-stream port (Rx).
RSSI (PWM) and CPPM output - If CH3 and CH4 are connected by a jumper CH1 will output RSSI (PWM) and CH2 will output CPPM for CH1~CH8.
When side port pins of A1 and X are connected by the jumper A1 will change from external analog telemetry port to internal built-in battery voltage sensor.
Two switchable PPM modes - FS mode and HS mode.
Frsky D8R-XP 27ms Firmware Specifications:
Operating VoltageRange: 3.5V-10.0V
Operating Current: 100Ma
Operating Range: 1.5km
Resolution: 3072 (>11bit)
Frsky D8R-XP 27ms Firmware Compatibility:
FrSky two way telemetry modules: DFT, DJT, DHT, DHT-U
What's in the Box:

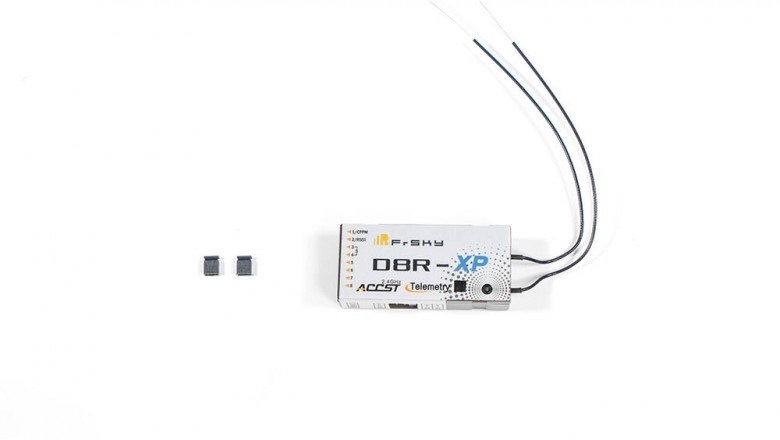

1 x D8R-XP
1 x Short tool
1 x Manual
