![What is a bellows liner? And when to use one?](https://www.fortunetelleroracle.com/upload/media/posts/2022-11/22/what-is-a-bellows-liner-and-when-to-use-one_1669109451-b.jpg)

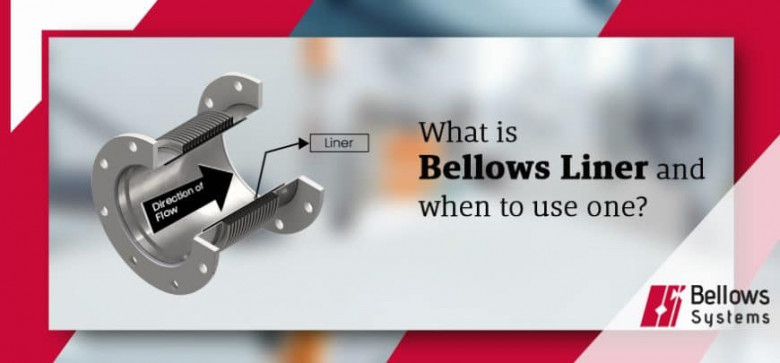

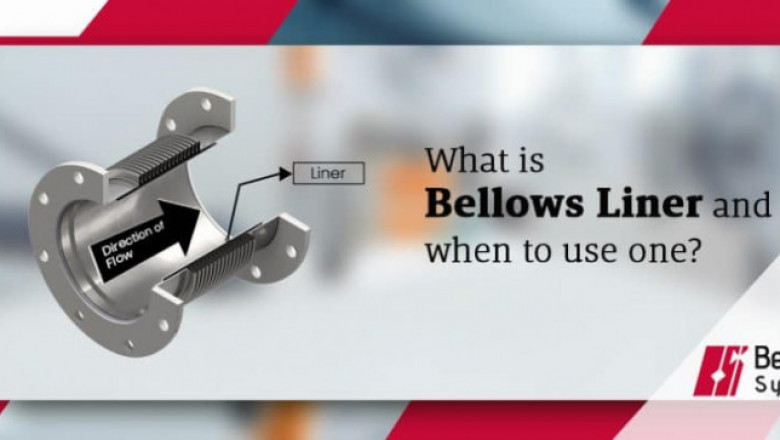

Bellows Liner is an internal sleeve that is used for the following cases
- To prevent flow induced resonant vibration of bellows due to high flow velocities
- To reduce possibility of erosion from abrasive flow media
- To limit/ minimize the friction losses and create a smooth flow
- To limit/ decrease the surface temperature of the bellows in high temperature applications.
Recommendations for proper design and use of a flow liner?
- The liner material should either be same as the bellows material or suitable for the application.
- When sizing a flow liner proper considerations must be given for the flow velocity, liner length and temperature of the flow media.
- When there is possibility for reverse flow, or bi-directional flow use of telescoping liner is recommended.
- When used in applications with abrasive media use thicker liner material to prevent failure in the liner and exposing the thinner bellows material to erosion.
- When lateral deflection or angular rotation is present, the liner should be designed with sufficient radial clearance to prevent interference with ID of the bellows through the entire movement range.
- When bellows are installed vertically in the direction of the flow, proper drain holes shall be provided on the liner to drain fluid from being trapped.
